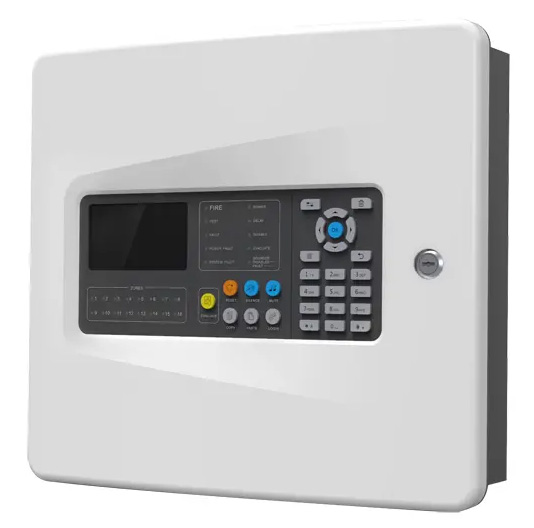

INTELLIGENT ADDRESSABLE FIRE ALARM PANEL
Features
- Up to 120 address per Loop.
- A and B Class Loop.
- 4.3” color LCD, 480×272 px.
- 16 Zone Led
- 1000 Event Memory
- Independently programmable siren output.
- Internal Power Supply and Battery.
- Easy Programming / Operate / Test.
- Can programmable with USB Flash Disk
- Management with three access levels.
- Protection against sabotage with keyed lock.
- CAN data bus for Network connection (Up to 20 panel)
- Aesthetic Design
Technical Specifications
| Operating Voltage | 220-230V/AC 50-60Hz |
| Operating Current | 3A |
| Fire Relay | 21-27V DC |
| Sounder Output | 21-27V DC |
| Fault Relay | 24V DC @1.0A |
| Temperature | 0°C ~ +45°C |
| Humidity | ≤95% |
| Dimensions | 560x430x170mm |
