Network Module with Built-in Isolator

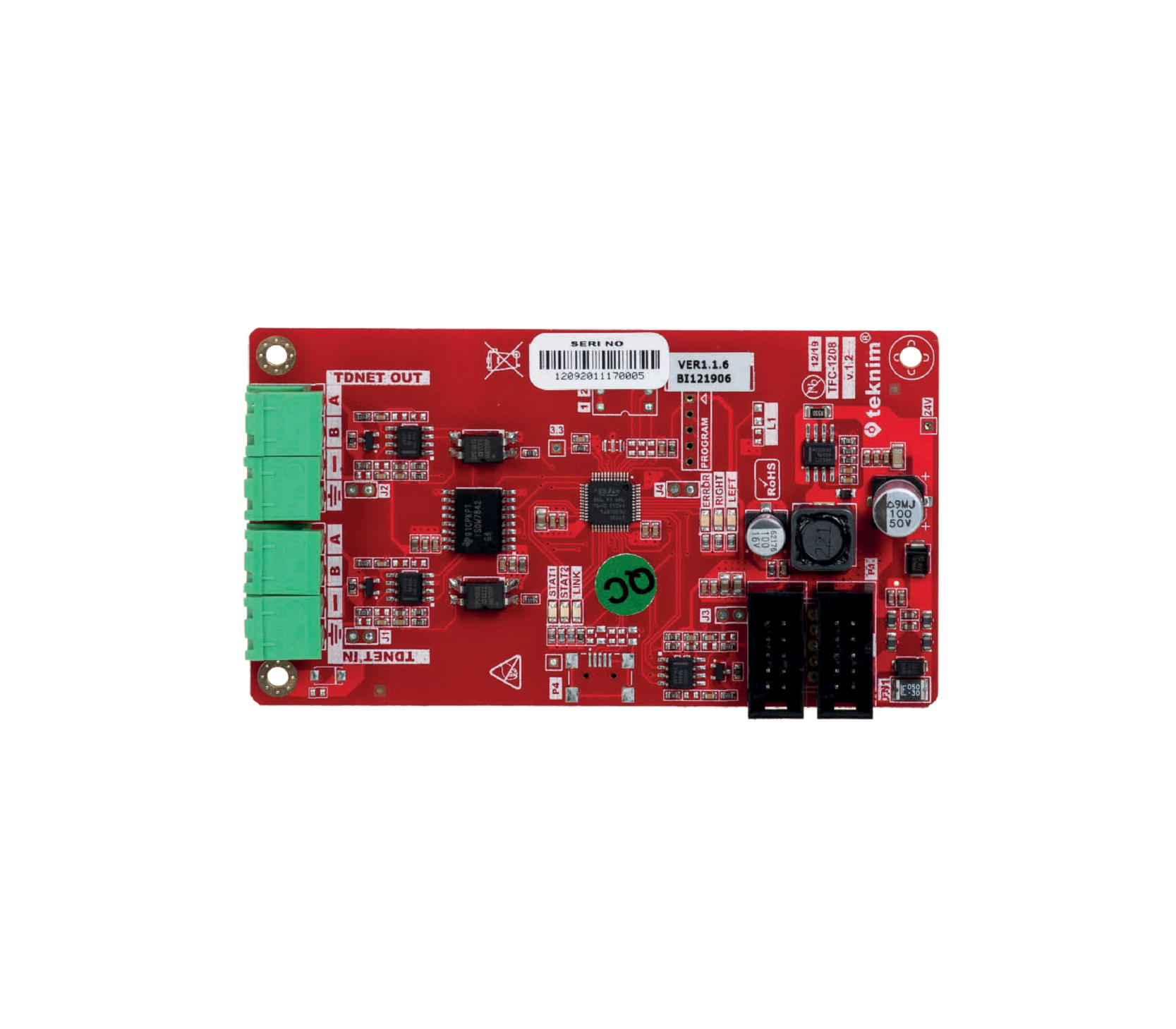

TFC-1209

Network Module with Built-in Isolator

TFC-1209 Network Module establishes a strong ring or bus network by inter-connecting 16 panels via TdNET protocol. It also supports built-in isolator which helps to protect the network line in case if there will be a short cut at the cable between control panels.

In case system load needs to be distributed or in facilities with multiple buildings, it can inter-connect all panels to build a ring or bus network and enable operation and control of the entire system as a single panel. It is used increasing loop quantities to 2 loops of TFP-1211 Control Panel.

Features

Supports Class A and Class B connections
Supports Built-in Isolator
Ensures a reliable and logic data transmission via Ring and Bus topologies.
Uses RS485 serial communication and data transmission speed is 230.400bps
Same level of accessibility and command sending to all panels via peer-to-peer communication network
Uses TdNET protocol developed by Teknim
In case of network board failure, it by-passes board input and output connections and ensures network line continuity
Network connection up to 16 panels
Enables monitoring of all networked panels from any panel in the system
Provides visual notification via error LEDs indicating open circuit direction or link LED indicating connection status.
It can be easily plugged to main board by connector and frame connection and operated
