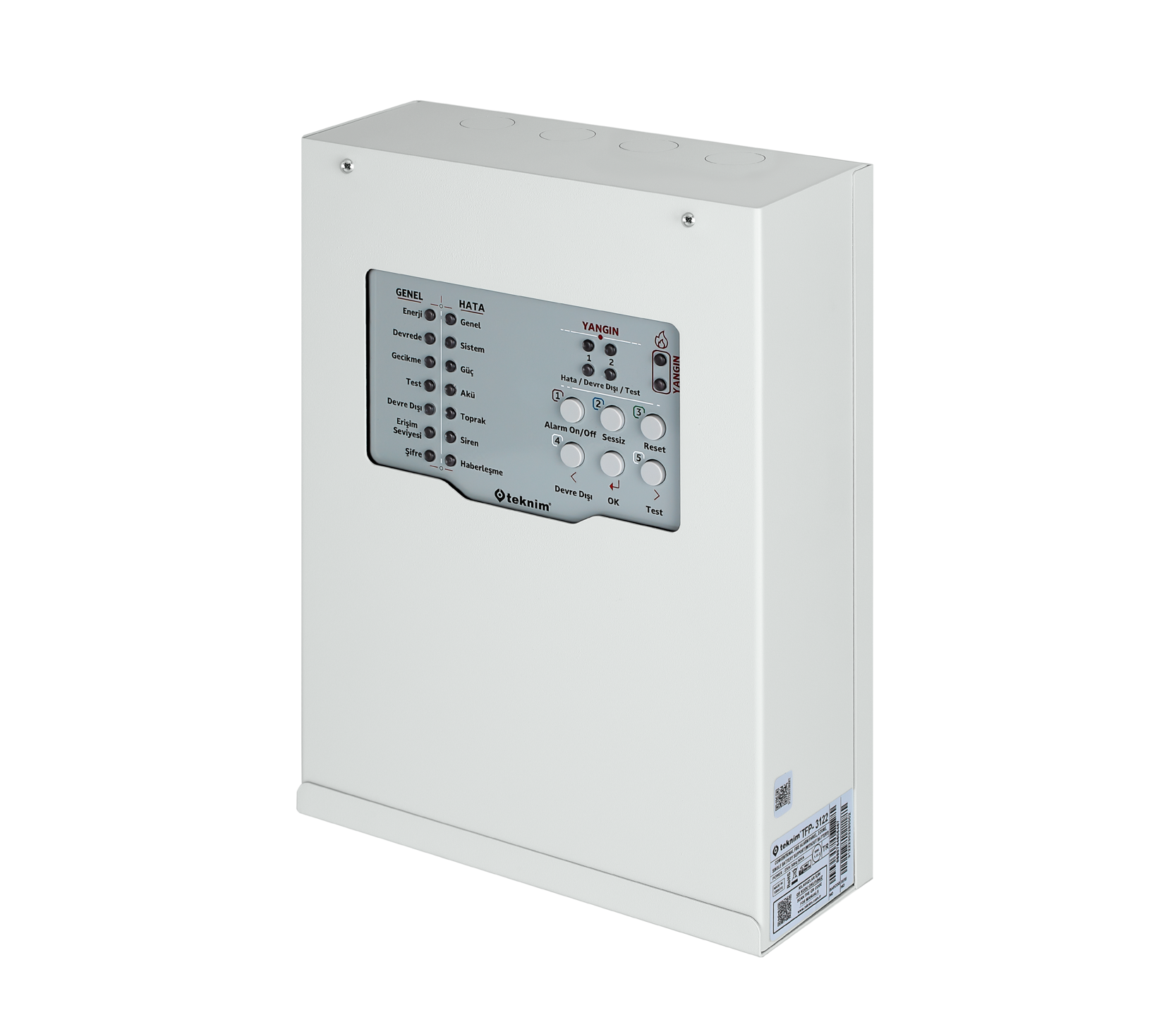

TFP-3122

Conventional Fire Alarm Panel, 2 Zone

TFP-3122 Conventional Fire Alarm Panel offers cost effective solutions for entry level projects with its 2-zone capacity and single battery operation. By using the optional TXM-5474 LTE Module or TXM-5271 Ethernet Module, the panel can be connected to the Mosaic cloud and can be controlled via the Mosaic Mobile app.

Enquire Now

Features

  • EN 54-2 and 54-4 certificates
  • Up to 32 detectors can be connected to each zone
  • Ability to distinguish between button and detector alarm
  • Control and receive real-time notifications via a web browser or mobile application using TXM-5271 (Ethernet) or TXM-5474 (LTE) modules
  • Ability to send SMS using the TXM-5474 LTE module
  • Ability to define a general delay time between 1 to 10 minutes
  • Easy programming with operation codes
  • Zones with “Fire and Fault/Disabled/Test” LEDs.
  • Clear and understandable system structure with error, warning, and alarm indicator
  • Intelligent charging system that extends battery life, with a smart shutdown feature to protect the battery when the voltage drops below 10.5 VDC
  • Zone testing feature with end-of-line resistors for supervision against incorrect connections for siren outputs and zone inputs
  • 24 VDC 300mA automatic fused external power output (AUX)
  • 1 NC/NO alarm relay (for button alarms, detector alarms, etc.)
  • 1 NC/NO fault relay (for power failure, zone fault, battery fault, etc.)
  • Ability to disable desired zone
  • Switching power supply
  • Metal enclosure
  • Used with 1 piece of 12V 7Ah battery
