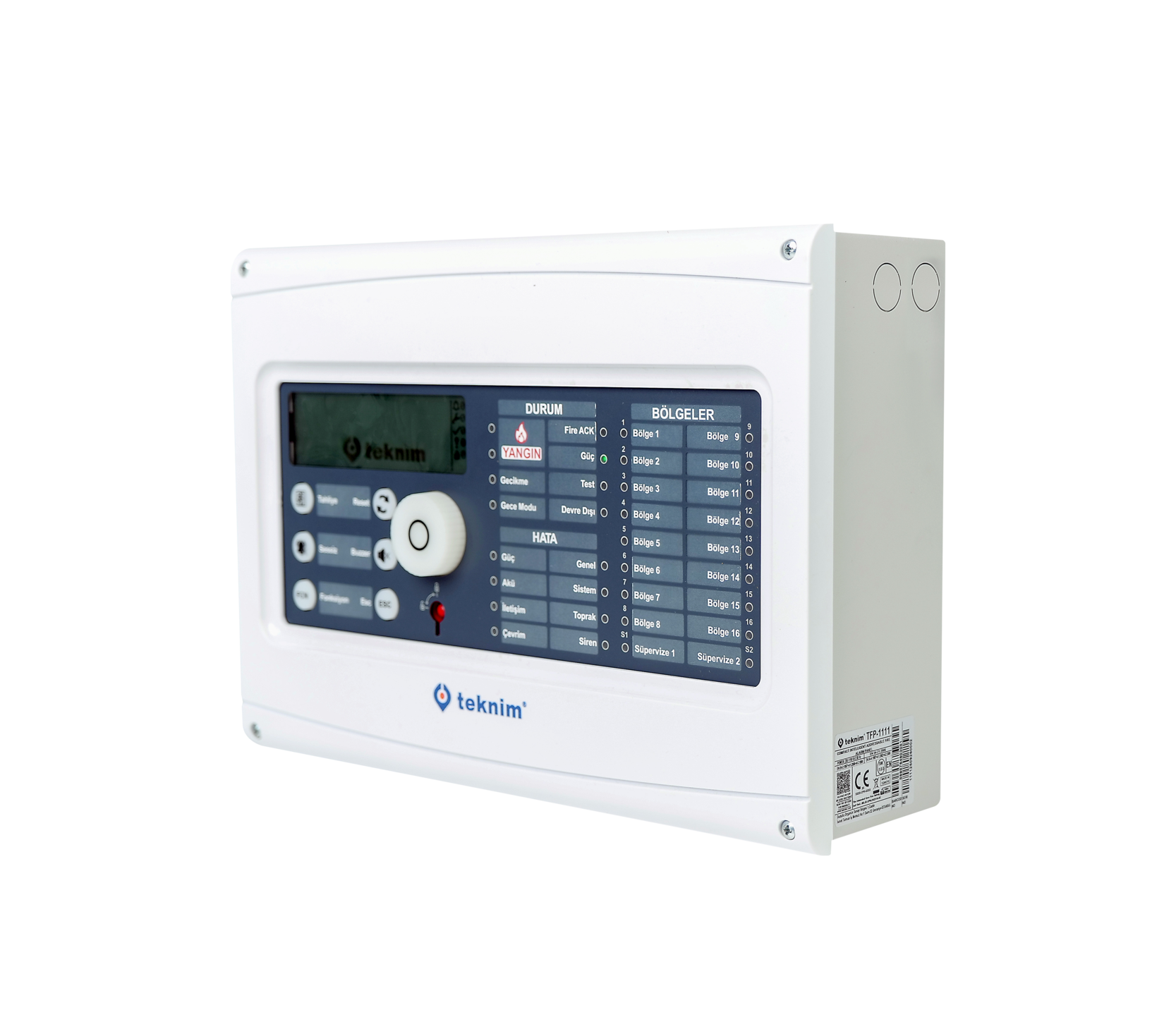

TFP-1111

Compact Intelligent Addressable Fire Alarm Panel

TFP-1111 is designed to meet modern fire safety requirements with its compact structure and advanced features. With support for 16 zones and 130 devices, it offers flexible configuration options. Optional LTE, Ethernet, and Network modules allow remote monitoring, management, and multi-panel integration. The built-in BLE module provides the advantage of short-range wireless access and monitoring.

Its easy installation, user-friendly interface, and customizable zone labels make it adaptable to different application areas. The supervise inputs can recognize existing conventional system connections, making the panel stand out. This feature acts as a bridge between conventional systems and new addressable systems, simplifying modernization processes.

With its compact design, reliability, and expandable structure, TFP-1111 provides a professional fire safety solution for residential, commercial, and industrial buildings. Its modern and aesthetic design ensures seamless integration into visible areas, maintaining architectural harmony with the environment.

Features

  • Supports EN54-2, EN54-4 and EN54-21 standards
  • 1 loop
  • Storing up to 4095 Events History
  • 16 zones
  • 130 endpoints
  • 2 Supervised Input can connect conventional zones
  • Optional LTE and Ethernet module support for remote monitoring and management
  • Feature to send panel status information via SMS to up to 8 users with the LTE Module
  • Optional network support for up to 16 TFP-1111 panels
  • Up to 32-character panel/zone/endpoint labels
  • Panel activation feature
  • Access level 2 key feature
  • Access level 3 password feature
  • 240×64 Graphical LCD
  • Changeable zone label structure
  • Optional flush mounting feature
  • Dual color zone and supervision indicators
  • Quick and easy navigation with a rotating menu button
  • Silent and comfortable buttons made of silicone material with LED indicators
  • 54 Indicator LED
  • Interior lighting for easy installation
  • Configurable function button for easy operations
